The Complete Carbide Rotary Burr Guide: Types, Specs, Selection & Sourcing

A Shenzhen mold shop once burned a week of delivery because an engineer reached for a "close enough" cylindrical head on a rush injection mold. Three minutes on the machine, three chipped teeth. The rework and rush reorder that followed are the kind of loss every wrong-head call invites, not a one-time fluke.

Too many buyers and engineers treat a carbide burr as a few dollars of cheap consumable, until the wrong head shape, cut type, or material grade chips, stalls a line, or ruins a workpiece. A chipped burr can destroy an entire block of mold steel. One bad sourcing decision can drag down a whole delivery chain.

This guide is written for procurement buyers, distributors, and factory engineers who need to purchase carbide rotary burr tools in volume for mold, automotive, aerospace, hardware, or dental work. By the end, you will be able to run a three-step selection on your own (material × application × shape) and know the eight hard metrics for vetting a carbide burr manufacturer. No fluff. Just parameters, comparison tables, and a checklist that helps you sound more professional in RFQs and lowers your sourcing risk.

Key Takeaways

• Wrong head shape, cut type, or grade causes chipping, rework, and delivery slips that dwarf the burr's own unit price. Selection affects total cost more than price haggling does.

• Head shapes follow the A–N letter system (cylindrical A, ball C, tree E/F/G, flame H, cone J/K/L/M, inverted cone N) mapped 1:1 to the German DIN 8032 codes (ZYA, KUD, RBF, and others).

• The three-step method: pick cut type by material (double cut for steel/stainless, aluma cut for aluminum), then head diameter and tooth density by application, then head shape by geometry.

• Shank diameter and RPM move in inverse proportion: larger heads run slower. A 3 mm micro head can spin tens of thousands of RPM; a 16 mm-plus head tops out at 10,000–15,000 RPM.

• Vet a supplier on eight points: sintering process, CNC equipment, silver brazing, ISO 9001, MOQ, lead time, free samples, and OEM/ODM depth. Then calculate total cost of ownership (TCO), not just unit price.

Table of Contents

1. What Is a Carbide Burr?

2. Core Parameters Quick Reference

3. The 3-Step Selection Method

4. Industry Application Scenarios

5. Operating Rules & Tool Life

6. Evaluating a Manufacturer

7. Capability Comparison Checklist

8. FAQ

9. Conclusion

1. What Is a Carbide Burr (Carbide Rotary Burr)?

1.1 Definition, aliases & material

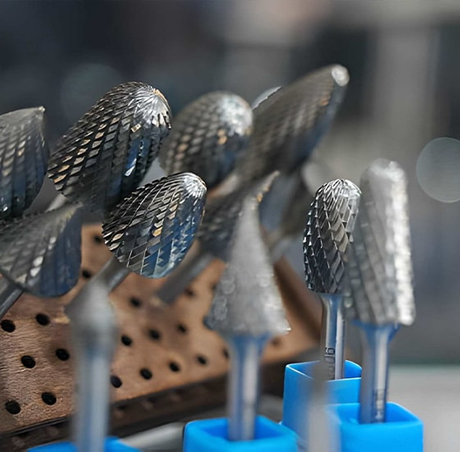

A carbide burr (also called a carbide rotary burr) is a high-speed cutter. You'll mount it in an electric die grinder, a pneumatic engraving pen, or a small CNC machine, where it handles metal deburring, dressing, contouring, and precision milling. In Chinese shops it goes by several names (tungsten steel rotary file, mold milling cutter, grinding head), but it's the same family of tool. For the material science behind it, the tungsten carbide Wikipedia entry is a useful background read.

The core is a tungsten carbide matrix, written as WC+Co (tungsten carbide grains plus a cobalt binder phase). The tungsten grains deliver hardness and wear resistance. The cobalt binder gives toughness. That hard yet tough combination lets a carbide burr do jobs that high-speed steel files and small grinding wheels handle poorly. Pick the right grade and one carbide burr can outlast dozens of steel files.

1.2 Why it beats HSS files and small grinding wheels

• It lasts. Under the same conditions a carbide burr wears far slower. One tool replaces dozens of steel files, and tool-change downtime drops.

• The finish is steadier. It cuts rather than grinds, so the Ra value stays controllable. Precision dressing leaves an even surface and often skips a polishing pass.

• Safer, too. Resin grinding wheels can shatter and kick up dust. A carbide rotary burr produces curly chips instead, so the shop stays cleaner and inhalation risk falls.

• And it's faster. The double-cut geometry stays stable even at high material-removal rates, so metal removed per minute is clearly higher.

2. Core Parameters Quick Reference (Must-Know Before Sourcing)

Learn these parameters before you approach a supplier or send an RFQ. They are the common language you speak with a manufacturer.

2.1 Material grades: YG8 / YG15, fine-grain & the K/P/M system

When you specify a carbide burr, the grade sets the floor for performance. Domestic tungsten carbide is sorted by the tungsten-cobalt class. The most common grades:

• YG8: roughly 8% cobalt. Balanced wear resistance and toughness. The most general-purpose grade, suited to steel, cast iron, and stainless steel at moderate loads.

• YG15: roughly 15% cobalt. Tougher and more impact-resistant. Suited to heavy cutting, interrupted cuts, and chipping-prone conditions.

• Fine-grain grades (fine WC particle sizes): finer grains give a sharper edge and better wear resistance. Suited to finishing and micro parts.

• The ISO K/P/M system: K class maps to cast iron / non-ferrous metals, P class to steel, M class to stainless steel / mixed materials. It helps you match the grade to the workpiece.

Rule of thumb: more cobalt means tougher; less cobalt means harder and more wear-resistant. Decide by whether your job fears impact. Heavy, chipping-prone work wants high cobalt (YG15); fine finishing and wear resistance want low-cobalt fine grain.

2.2 Head shapes A–N (national standard letters vs DIN 8032)

Carbide burr head shapes follow China's national A–N letter system, which maps 1:1 to the German DIN 8032 codes (ZYA, KUD, RBF, and others). For cross-border specs, the ISO 7755 series is the international reference: ISO 7755-1:2013, for instance, covers cylindrical hardmetal burrs. The formal specification lives at ISO 7755-1:2013 (hardmetal burrs standard). With a documented system, you can argue model numbers with a supplier without the usual confusion.

When selecting, don't read only the letter. Also check the ratio of cut diameter to shank diameter. Deep-cavity work wants a long, slender neck; shallow flat work wants a short, stout head.

2.3 Cut type map: single / double / aluma / coarse / fine

One line separates them: single cut for hard, brittle, fast cutting; double cut as the general, anti-vibration, good-finish default; aluma cut specifically to stop aluminum and copper from clogging. In detail:

• Single cut: parallel flutes. Cuts hard steel and cast iron fast with a good finish, but slightly more vibration. Suited to heavy cutting.

• Double cut (cross cut): crossed flutes. Better chip control, less vibration, higher finish. The first-choice general geometry for steel / stainless / non-ferrous metals.

• Aluma cut: wide chip evacuation grooves. Built to stop clogging in aluminum, copper, plastics, and soft metals.

• Coarse cut: coarse teeth for fast stock removal on welds and soft materials with large allowances.

• Fine / fine-tooth: finishing only. Lower Ra, brighter surface.

2.4 Shank diameter & RPM matching

Carbide burr RPM is set by head diameter: larger heads run slower. A 3 mm head runs about 50,000–70,000 RPM; 6 mm about 30,000–40,000; 12 mm about 15,000–20,000; 16–25 mm about 8,000–15,000. Overspeed is the number-one cause of chipping.

Common shank diameters: 3 mm, 6 mm, 8 mm (metric) and 1/8″ (3.175 mm), 1/4″ (6.35 mm) (imperial). Micro work (dental, etc.) uses 3 mm or 1/8″.

The logic is simple. A large head reaches the same surface speed at a far lower RPM:

• 3 mm head: roughly 50,000–70,000 RPM

• 6 mm head: roughly 30,000–40,000 RPM

• 12 mm head: roughly 15,000–20,000 RPM

• 16–25 mm head: roughly 8,000–15,000 RPM

Always cap speed by head diameter and confirm your tool's RPM range covers the zone.

2.5 Coating value (TiN and others)

Most carbide burr tools are already hard enough. But on sticky materials like aluminum and titanium, a TiN (gold) coating cuts friction, resists heat, prevents sticking, and extends life. For high-temperature alloys, TiAlN / AlTiN is an option.

Caution: the market has fake coated copies. The color looks like TiN but it's cheap coloring, so verify on incoming inspection. Use coating as a job-specific plus, not your main quality test.

3. The 3-Step Method to Choose the Right Carbide Burr (Core of This Guide)

To choose a carbide burr, match three variables in order: (1) cut type to material (double cut for steel/stainless, aluma cut for aluminum); (2) head diameter and tooth density to the application; (3) head shape (A–N) to the workpiece geometry.

There's no secret formula. Just three steps, in order. Nail them and a wrong-head call becomes the exception, not the rule.

Step 1: Pick cut type by workpiece material

Step 2: Pick head diameter & tooth density by application

• Heavy cutting / large allowance: large shank, large teeth, coarse cut. Fast removal, high efficiency.

• Finishing / bright surface: small head, fine teeth, double cut. Low Ra, fewer witness marks.

• Deep cavity / narrow slot: long slender neck, tree / flame head. Avoids tool interference.

Step 3: Pick head shape by geometry (quick matrix)

• Flat / OD → A / B

• Radius / concave → C / E

• Deep hole / deep cavity → E / F / G (tree)

• Chamfer / countersink → J / K / L / N

• Narrow slot / fine detail → H (flame)

Mini-story A — deep mold cavity deburring. An injection mold shop in Dongguan needed to clear parting-line burrs inside a 40 mm-deep cavity. They started with a cylindrical head that couldn't reach the corners and kept breaking. Running the framework: the material was pre-hardened steel (double cut); the condition was a deep cavity (slender neck); the geometry was a radiused transition (tree head F/G). After switching to a double-cut tree carbide burr, one tool did the work of three. Single-mold dressing time dropped from 45 minutes to 18, delivery stabilized, and rework went to zero.

Mini-story B — a North American distributor's RFQ. Mark, a procurement lead at a North American distributor, needed 2,000 private-label carbide burr kits without blowing his launch window. The requirement broke down like this: end users run pneumatic tools (standardize on 1/4″ shank); cover many conditions (kits mix cylindrical / ball / tree / cone shapes); build brand recall (OEM laser marking plus custom cases). This "kit + laser marking + MOQ-friendly" package is exactly how a mature carbide burr manufacturer serves distributors. It lowers the distributor's inventory complexity while strengthening their own brand. If your business involves private labeling, our custom & OEM/ODM services cover laser marking, custom head shapes, packaging, and documentation end to end.

Free download: To turn the head-shape, cut-type, and shank tables above into a purchase list fast, grab our carbide burr spec sheet & selection matrix. It's a printable one-page cheat sheet that condenses this guide's comparison tables into a single reference card.

4. Industry Application Scenarios

4.1 Mold manufacturing

Cavity dressing, parting-line deburring, edge rounding, and electrode trimming. The mold shop is the largest home turf of the carbide rotary burr. The key is complete head-shape coverage and stable concentricity; otherwise the dressed surface shows witness marks that hurt the molded part's appearance and fit.

4.2 Automotive / aerospace

Light alloys (aluminum, magnesium) deburring, casting gate and riser dressing, and composite edge treatment. These industries are acutely sensitive to safety and consistency. They demand batch stability and zero chipping risk, often specifying double cut plus a certified supplier, with incoming inspection on lots.

4.3 Hardware & general machinery

Weld cleaning, chamfering, inner-hole dressing, and derusting. High volume and mixed conditions make this the category traders move most. Kit combinations are the best value and the main volume driver for any carbide burr supplier.

4.4 Dental / precision machining

Mini-story C — titanium in dental machining. A dental lab worked titanium alloy frameworks and needed a micro 3 mm-shank carbide burr for finishing. Two pain points: poor concentricity made the tool chatter and scar the gingival contact surface; excessive RPM turned the titanium "blue" (a heat oxide that discolors the part and makes it brittle). The fix: a high-concentricity micro head (runout under 0.01 mm) at low speed (a few thousand RPM) with ample cooling. The titanium stayed un-blued and the fit stayed accurate. In precision work, small and stable matter more than fast. That's a point many new buyers miss.

5. Operating Rules & Tool Life

Even the best burr fails if used wrong. These rules directly affect life and safety.

RPM / pressure / cutting direction

• RPM: cap by head diameter. No overspeed.

• Pressure: light, steady feed. Let the teeth cut, not grind. Hard pressure only chips teeth and burns the tool.

• Direction: hold the correct angle and avoid long dwell in one spot.

Clamp depth & anti-clog lubrication

• Clamp: insert the shank at least 3/4 into the collet, gripping the plain shank rather than the cutting section. Otherwise runout spikes and the tool snaps.

• Lubrication: a light cut fluid or wax on aluminum and titanium prevents sticking and cools the cut. Plain steel can run dry, but long dry grinding still burns the tool.

Safety

Safety glasses and a face shield are mandatory. Never wear gloves near rotating parts (entanglement risk). Keep the shop ventilated. A qualified carbide burr manufacturer spells these out in the box documentation.

6. B2B Procurement: How to Evaluate a Carbide Burr Manufacturer

Selection is the first half. Picking the right supplier decides whether you earn and deliver steadily.

6.1 Eight evaluation dimensions

1. Sintering process: Is it HIP (hot isostatic pressing) densified? That reduces porosity and lifts life and consistency.

2. CNC equipment: 5-axis CNC grinding keeps head geometry consistent across batches with no drift.

3. Joining process: Are head and shank silver brazed (stronger than copper brazing)? It resists torque and prevents head separation, which is a safety hazard source.

4. Certification: ISO 9001 is the baseline. Export may need industry- or customer-specific qualifications.

5. MOQ: Does the shop accept small trial batches? That sets your sampling cost.

6. Lead time: How long for standard versus custom? It directly hits your customer's delivery.

7. Free samples: A supplier willing to sample is worth talking volume with, and it's the lowest-cost way to verify quality.

8. OEM / ODM depth: laser marking, custom head shapes, packaging, and manual, full-package capability.

6.2 Common pitfalls

• Over-long dry grinding burns the tool, blues it, and collapses life.

• Overspeed chips teeth and snaps the shank (the top killer).

• Mismatched shank spikes runout, damages the spindle, and ruins accuracy.

• Fake coatings look like TiN but are just coloring; life suffers.

• "Rock-bottom" low-cobalt overstates cobalt content; brittle, chips easily. Cheap unit price, expensive total cost.

6.3 Cost view: unit price vs total cost of ownership (TCO)

A burr that's 30% cheaper but lives only half as long costs more per kilogram of metal removed. In TCO, count life, rework, downtime, and customer complaints. That's what separates cheap from worth it. It's also why a reliable carbide burr supplier will send you samples for a real test instead of just winning on the quote sheet.

Test it on your own material: We provide same-material, same-batch get free samples & quote service. An engineer works one-on-one with you on selection and pricing so you push risk to the floor before talking volume.

7. Manufacturer Capability Comparison Checklist

Drop each candidate into one table and score all eight dimensions of a carbide burr supplier: sintering (HIP?), equipment (axis count), joining (silver brazed?), certification, MOQ, lead time, samples, OEM. Archive it alongside the selection matrix above and you have your sourcing decision draft.

8. FAQ

Most carbide burr buyers ask the same four questions. Here are straight answers.

How hard a material can a rotary burr machine?
Generally stable on steel, cast iron, stainless, titanium, and aluminum up to HRC 60–65. Higher hardness or very brittle materials need fine-grain / proper grade and lower parameters. Ordinary carbide burr tools are not recommended for super-hard ceramics.

How do I tell single cut from double cut?
Hard, brittle, fast cutting means single cut. General, anti-vibration, good finish means double cut. Non-ferrous means aluma cut. When unsure, try double cut first; it covers the widest range.

6 mm or 3 mm shank?
Depends on your collet and accuracy need. Rough, high-force work uses 6 mm (1/4″). Fine, precision, or dental uses 3 mm (1/8″). The shank must match your machine collet exactly.

How do I judge a solid joint?
Even weld with no cold solder and no gap. Ask the supplier for torque / pull-test reports, or prove no separation on a sample. Silver brazing is typically clearly more reliable.

9. Conclusion: Choose Your Carbide Burr Right and Stable

Put the two halves together. On the selection side, use material × application × shape to cut loss. On the sourcing side, use eight dimensions to screen factories and TCO to read the real cost. Get both right and the carbide burr stops being a cheap consumable. It becomes the steadiest link in your delivery chain.

If you want to see these selections land on a real production line, browse our mold / automotive / aerospace application cases, or go straight to the carbide burr product series to filter stock by head shape and cut type. For custom or private-label work, reach the factory directly for one-on-one support.
