Technical Specifications of Steel Files

Measurements

Steel files are essential tools in metalworking, woodworking, and various other industries where precision shaping and finishing of materials are required. They are made from high-quality steel and are designed to remove material through the action of their teeth, which are formed by cutting or stamping the steel surface.

The size of a steel file is a critical factor in determining its effectiveness for a particular job. As mentioned, files can range in length from as small as 3 inches to as long as 14 inches or even longer. This wide range allows for a high degree of specialization in their use.

Shorter files, typically under 6 inches in length, are ideal for tasks that require precision and control. These files are often used for intricate work such as filing small parts, deburring, or refining edges. The compact size of these files allows for more precise application of force and better control over the material being worked on, making them perfect for detailed finishing work.

On the other hand, longer files, which can exceed 14 inches in length, are designed for more aggressive material removal. These files are often used in the initial stages of shaping a workpiece, where the goal is to quickly remove excess material. The longer length of these files provides a larger contact area, which can lead to faster and more efficient material removal. This makes them suitable for tasks such as rough shaping, smoothing large surfaces, or preparing materials for further finishing.

In addition to length, the shape and coarseness of a file's teeth also play a significant role in its application. Files can have different profiles, such as flat, round, half-round, square, or triangular, each suited for specific tasks. The coarseness of the teeth, which can vary from very fine to very coarse, determines the amount of material that can be removed with each stroke and the smoothness of the finish.

Selecting the right file for a job involves considering not only the length but also the shape, coarseness, and the material being worked on. Proper selection and use of steel files can greatly enhance the efficiency and quality of work in various crafting and manufacturing processes.

• Length: Common lengths include 4", 6", 8", 10", and 12".

• Width and Thickness: These dimensions vary depending on the file type, with some files being wider and thicker for more aggressive material removal.

Standards and Grades

Steel files are indeed classified according to several standards that define their shape, size, and cutting pattern. These standards are crucial for ensuring consistency and reliability across different manufacturers. Some of the common standards include:

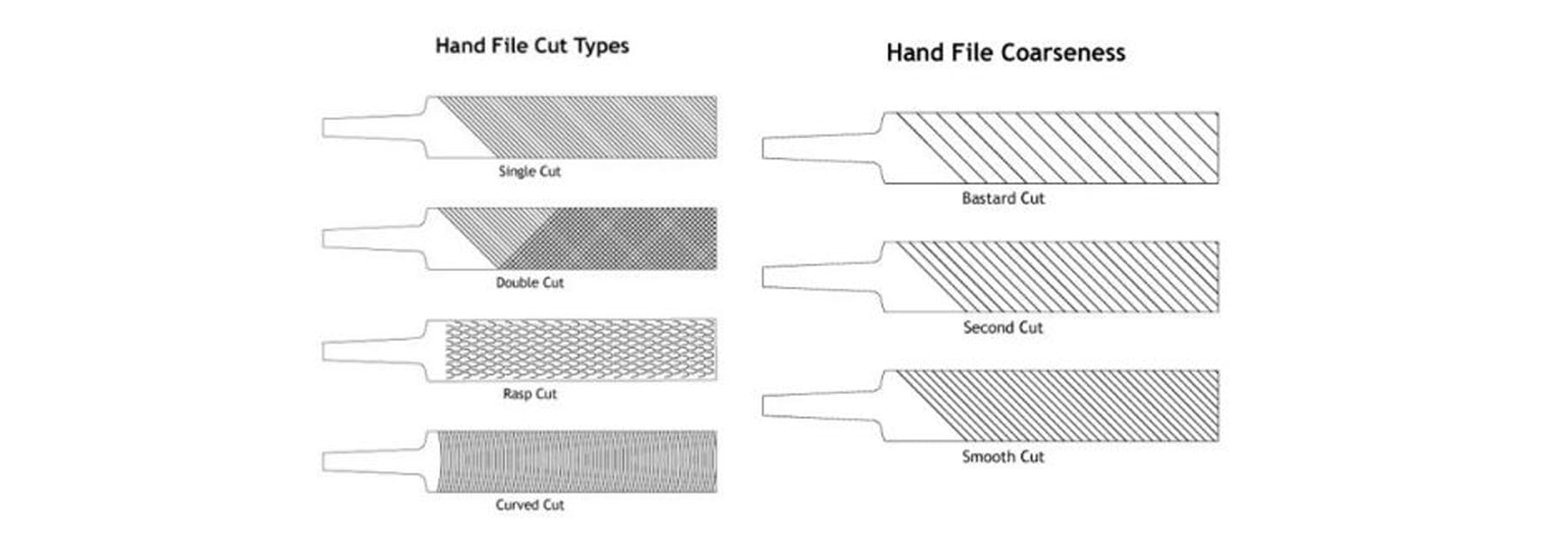

• American Standard (Bastard, Second Cut, Smooth)**: This classification refers to the coarseness of the file's teeth. "Bastard" is the coarsest, suitable for rapid material removal, while "Smooth" is the finest, used for finishing tasks.

• Swiss Pattern Files**: Known for their precision, Swiss pattern files come in various cuts (00, 0, 1, 2, 3, 4, 5, 6) with increasing fineness. These files are used for very detailed work requiring high precision.

• File Terminology and Cuts**: The coarseness of a file is determined by the number of teeth per inch. Single-cut files have a single set of parallel, diagonal rows of teeth and are used for producing a smooth surface finish. Double-cut files have two sets of diagonal rows of teeth, with the second set cut in the opposite diagonal direction, allowing for faster material removal.

• Shape and Profile Standards**: Files come in various shapes such as flat, round, half-round, square, and triangular, each suited for specific tasks. The shape determines the file’s application and efficiency in various tasks.

These standards and classifications help users select the appropriate file for their specific needs, ensuring optimal performance and results in various applications such as metalworking, woodworking, and automotive repair.

Performance Characteristics

Several key characteristics influence the performance of a steel file:

• Cut Type: Single-cut files are used for smooth finishing, while double-cut files are designed for rapid material removal. Rasp-cut files are specifically for wood and other soft materials.

• Hardness: A measure of the file's resistance to wear and deformation, typically indicated by the Rockwell hardness scale. High-quality files have a Rockwell hardness of around 60-64 HRC.

• Tooth Geometry: The shape and arrangement of the teeth affect how the file interacts with the material, influencing both the speed and smoothness of the cut.

Application Suitability

Different technical specifications make steel files suitable for various applications. For instance:

• Machinist Files: Best for metalworking due to their precise tooth patterns and hardness.

• Needle Files: Ideal for delicate work in jewelry and model making due to their small size and fine cuts.

• Diamond Files: Suitable for hard materials like glass and ceramics because of their superior cutting ability and durability.
