What Is a Carbide Burr?

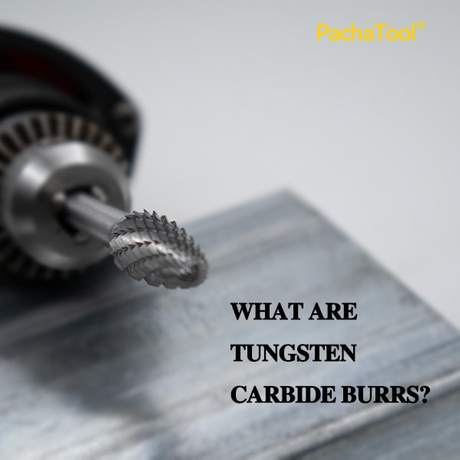

A carbide burr — also called a rotary file, die grinder bit, or tungsten carbide rotary burr — is a precision cutting tool used with high-speed rotary tools, die grinders, and CNC machines. The cutting head is made from tungsten carbide, one of the hardest materials available for tooling, with a hardness typically exceeding 90 HRA.

Who this guide is for: Machinists, welders, metal fabricators, wood carvers, auto body technicians, jewelry makers, and serious DIY enthusiasts.

You chuck a carbide burr into a die grinder or rotary tool, spin it at thousands of RPM, and the fluted cutting edges shear away material in tiny chips. Unlike grinding wheels that abrade, carbide burrs cut — giving you more control, less heat buildup, and a cleaner surface finish.

Tungsten carbide maintains its hardness at temperatures up to 1,000°C (1,832°F) — far beyond where HSS would fail. According to OSG Tool, carbide rotary files operate effectively at speeds 2–3x higher than HSS equivalents without edge degradation.

Single Cut vs Double Cut

The rule: Cleaning heavy weld beads on carbon steel → single cut. Finishing aluminum or carving wood → double cut only.

Complete Carbide Burr Shape Chart: SA Through SN

SA — Cylindrical (Plain, Without End Cut)

Straight cylinder, flat sides and top, no end teeth. Best for: flat surfaces, straight edges, large-area material clearing. Smoothing weld beads on plate steel, surfacing flat castings.

SB — Cylindrical with End Cut

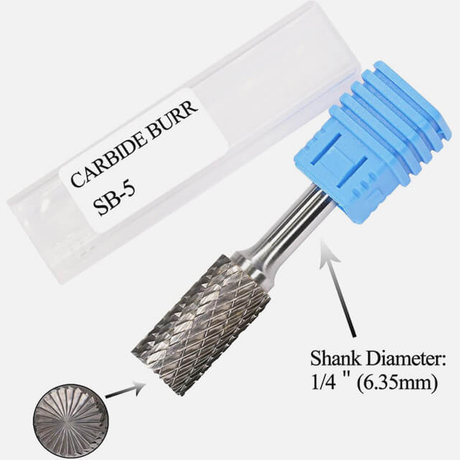

Straight cylinder with cutting flutes on both sides AND end face. Best for: pocket bottoms, slot floors, step milling. The versatile workhorse.

SC — Cylindrical with Radius End (Ball-Nose)

Cylindrical body → rounded semi-spherical tip. Best for: radiused corners, fillets, contour blending. Mold and die work — prevents stress risers.

SD — Ball Shape

Fully spherical cutting head. Best for: concave hollows, 3D carving, porting cylinder heads, jewelry engraving. Cuts equally well from any approach angle — irreplaceable for internal cavities.

SE — Oval / Egg Shape

Elongated oval, narrow tip → wider middle. Best for: rounded corners, organic contours, blending welds on curved pipe joints. Larger contact area than ball for faster blending.

SF — Tree Shape (Rounded / Radius End)

Tapered cone narrowing to a rounded tip. Best for: tight internal corners, deburring confined spaces, V-grooves. Slips into gaps cylinders can't reach.

SG — Tree Shape (Pointed End)

Tapered cone with sharp pointed tip. Best for: dead-sharp corners, V-groove bottoms, deep recess detail. SF vs SG: radius corner → SF; dead-sharp corner → SG.

SH — Flame Shape

Elongated teardrop profile, curved and slender. Best for: fine detail carving, sculptural work, jewelry. Excellent cutting-zone visibility.

SL — 60° / 90° Cone (Tapered, Radius End)

Conical with consistent angle, rounded tip. Best for: chamfering, beveling edges, countersinking, weld prep.

SM — Pointed Cone (14° Taper to Point)

Long slender 14° taper to a sharp point. Best for: hole enlarging, inside-diameter deburring, deep narrow bores.

SN — Inverted Cone

Reverse cone — wider at tip, narrower at shank. Best for: undercuts, back-chamfering, O-ring grooves, snap-ring retention slots. Most underutilized shape — critical for aerospace work.

Quick Reference: Shape Selection by Task

Carbide Burr RPM Speed Guide

Three universal rules:

1. Start slow, then increase

2. Chipping/chattering → RPM too low, speed up

3. Never exceed 35,000 RPM — carbide fractures

Material Compatibility Matrix

Carbide Burr vs HSS Burr

For professional metalworking, carbide is the only rational choice. HSS belongs in light hobby use.

Pro Tips for Maximum Burr Life

1. Never exceed max RPM — microfracturing kills edges

2. Use cutting lubricant on hard metals — extends life 30–50%

3. Keep the burr moving — dwelling overheats the braze joint

4. Clean flutes regularly — brass brush only, never steel

5. Store burrs separately — loose in a drawer is the #1 failure cause

6. Match shank to collet — adapter sleeves introduce runout

7. Steady moderate pressure — forcing it doesn't speed up the job

Frequently Asked Questions

Q: SA vs SB — what's the difference? SA = side cutting only, smooth end face. SB = side + end cutting teeth. SA for flat surfaces; SB when you also need to cut pocket bottoms.

Q: Can I use carbide burrs on wood? Yes — double cut only. Ball (SD), oval (SE), and flame (SH) shapes. Moderate RPM (8,000–15,000 for 1/4") to avoid burning.

Q: What RPM for a 1/4" burr? 11,000–16,500 RPM. Start low, assess cut, increase if needed.

Q: Best shape for porting cylinder heads? SD (ball) for bowl area + SF (tree) for tight corners. Double cut for aluminum heads.

Q: Can carbide burrs be resharpened? No — complex 3D flute geometry makes it impractical. Replace when dull.

Q: Why does my burr chatter? RPM too low, or excessive shank stick-out. Increase speed first; reduce stick-out if needed.

Q: How to clean a clogged burr? Soak in acetone 10–15 min, then brush with brass wire brush (never steel). Aluminum buildup → sodium hydroxide soak.

Conclusion: Building Your Carbide Burr Kit

Minimum viable kit covering 95% of tasks:

Five shapes, double cut → flat surfaces, curves, tight corners, edges, and undercuts across steel, aluminum, wood, and plastic. Add SA/SB single cut for heavy steel work, and you're set.
